螺栓覆蓋范圍M18-M220，工作壓力：1500bar；
| 型號 | 螺栓直徑 | 預緊力 |
面積
mm²
|

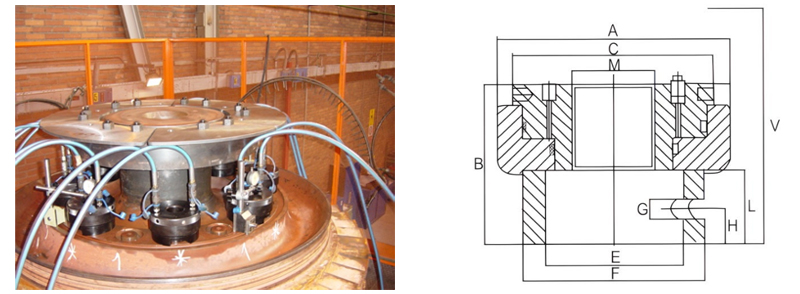

外形尺寸 |
行程
mm
|
||||||||
| M | Inch | Kn |
A |
B |
C |
E |
F |
G |
H |
L |
|||
|
GRHT18 |
M18 |
3/4" |
188 |
1256 |
70 |
75 |
65 |
45 |
60 |
6 |
8 |
29 |
8 |
|
GRHT24 |
M24 |
1" |
225 |
1500 |
80 |
75 |
70 |
50 |
68 |
6 |
10 |
35 |
8 |
|
GRHT27 |
M27 |
1-1/8" |
286 |
1906 |
90 |
87 |
80 |
55 |
75 |
8 |
13 |
38 |
8 |
|
GRHT30 |
M30 |
1-1/4" |
319 |
2125 |
95 |
87 |
85 |
59 |
79 |
8 |
16 |
42 |
8 |
|
GRHT36 |
M36 |
1-3/8" |
427 |
2845 |
105 |
90 |
95 |
62 |
82 |
8 |
20 |
45 |
8 |
|
GRHT39 |
M39 |
1-1/2" |
530 |
3532 |
110 |
90 |
100 |
70 |
88 |
10 |
22 |
45 |
8 |
|
GRHT42 |
M42 |
1-5/8" |
639 |
4262 |
118 |
90 |
100 |
72 |
90 |
10 |
28 |
45 |
8 |
|
GRHT48 |
M48 |
1-7/8" |
801 |
5341 |
130 |
100 |
115 |
80 |
102 |
10 |
32 |
51 |
8 |
|
GRHT56 |
M56 |
2-1/4" |
1087 |
7245 |
155 |
115 |
130 |
95 |
120 |
12 |
34 |
60 |
8 |
|
GRHT64 |
M64 |
2-1/2" |
1523 |
10151 |
178 |
130 |
150 |
107 |
136 |
12 |
43 |
67 |
10 |
|
GRHT72 |
M72 |
2-3/4' |
2029 |
13528 |
205 |
150 |
170 |
120 |
152 |
14 |
48 |
11 |
10 |
|
GRHT80 |
M80 |
3-1/8" |
2392 |
15944 |
220 |
165 |
190 |
135 |
172 |
14 |
53 |
85 |
10 |
|
GRHT90 |
M90 |
3-5/8" |
3355 |
22364 |
260 |
185 |
220 |
153 |
195 |
20 |
60 |
95 |
10 |
|
GRHT100 |
M100 |
4" |
3393 |
22619 |
270 |
205 |
230 |
165 |
210 |
20 |
67 |
105 |
10 |
|
GRHT105 |
M105 |
4-1/8" |
4243 |
28287 |
280 |
215 |
240 |
175 |
220 |
20 |
70 |
110 |
10 |
|
GRHT110 |
M110 |
4-3/8" |
4712 |
31416 |
300 |
225 |
260 |
180 |
230 |
20 |
73 |
115 |
10 |
|
GRHT125 |
M125 |
5" |
5832 |
38877 |
340 |
255 |
290 |
205 |
260 |
25 |
83 |
130 |
10 |
|
GRHT140 |
M140 |
5-1/2" |
7069 |
47124 |
380 |
285 |
320 |
230 |
290 |
30 |
90 |
145 |
10 |
|
GRHT150 |
M150 |
6" |
8423 |
56156 |
420 |
310 |
240 |
247 |
302 |
30 |
100 |
157 |
12 |
|
GRHT160 |
M160 |
6-1/2" |
9312 |
62080 |
430 |
320 |
360 |
255 |
315 |
35 |
107 |
167 |
12 |
|
上述為標準產品，如果其他規格、行程、更大的工作壓力或拉伸器力，請聯系當?shù)厥跈?quán)機構或我司技術工程師。 |
|||||||||||||
